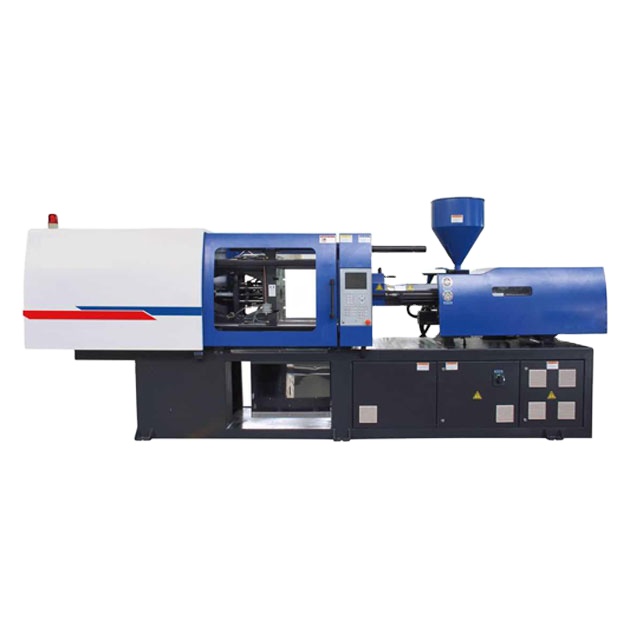

Hydraulic injection molding machine make razor plastic parts
Hydraulic injection molding machine make razor plastic parts
Payment Type:
L/C,Western Union,D/P,D/A,T/T,MoneyGram,Cash
Min. Order:
1 set
$7000 - 35000
/set
$11,300.00 — $5,600,000.00 /Set
option
Product Description
Product Attributes
Plastic Processed: PP, PC, ABS, PET, PVC, PE, PE/PP
Condition: New
Style: Horizontal
Distance Between Tie Bars(Width)(mm): 455mm
Distance Between Tie Bars(Height)(mm): 425mm
Mold Height(mm): 170 - 440 mm
Ejector Number: 5
Ejector Stroke(mm): 155 Mm
Ejector Force(kN): 70 Kn
Theoretical Shot Volume(cm³): 362 cm³
Injection Rate (g/s): 135 g/s
Machine Type: Hydraulic
Injection Weight (g): 326 g
Screw Speed (rpm): 1 - 190 Rpm
Screw Diameter (mm): 45 Mm
Weight (KG): 5000
Place Of Origin: China
Open Stroke(mm): 405 mm
Power (kW): 26 Kw
Warranty: 2 Years
Key Selling Points: High Productivity
Applicable Industries: Hotels, Manufacturing Plant, Machinery Repair Shops, Farms, Construction works , Other, Advertising Company
Showroom Location: Egypt, Turkey, Italy, Viet Nam, Philippines, Brazil, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, UAE, Colombia, Algeria, Sri Lanka, Bangladesh, Kazakhstan, Nigeria, Uzbekistan, Tajikistan
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years
Core Components: Bearing, Motor, Pump, Gear, Plc, Other, Pressure Vessel, Engine, Gearbox, Screw
After-sales Service Provided: Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Turkey, Italy, Viet Nam, Philippines, Brazil, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, UAE, Algeria, Sri Lanka, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Supply Ability & Additional Information
Packaging: New product low price horizontal moulding micro injection molding machine STANDARD EXPORT WOODEN PACKAGE
Supply Ability: 200 Set/Sets per Month
Port: ANY PORT IN CHINA
Payment Type: L/C,Western Union,D/P,D/A,T/T,MoneyGram,Cash
Packaging & Delivery
- Selling Units:
- set
- Package Type:
- New product low price horizontal moulding micro injection molding machine STANDARD EXPORT WOODEN PACKAGE
Product Description
Product Description
PRODUCT DESCRIPTION
| MODEL | 155Ton | |||||||
| INJECTION UNIT | A | B | ||||||
| Screw diameter | mm | 42 | 45 | |||||
| Shot size(theoretical) | Cm³ | 318 | 362 | |||||
| Shot weight | g | 286 | 326 | |||||
| Injection pressure | Mpa | 174 | 151 | |||||
| Injection rate | g/s | 135 | 155 | |||||
| Screw L/D ratio | L/D | 22.3 | 20.8 | |||||
| Screw speed | r.p.m | 190 | ||||||
| Nozzle Diameter | Srmm | 10 | ||||||
| CLAMPING | ||||||||
| Clamp tonnage | KN | 1550 | ||||||
| Toggle stroke | mm | 405 | ||||||
| Mould Thickness | mm | 170-440 | ||||||
| Space between tie-bars | mm | 455X425 | ||||||
| Ejector stroke | mm | 155 | ||||||
| Ejector tonnage | KN | 70 | ||||||
| Ejector number | Piece | 5 | ||||||
| Hole Diameter | mm | 125 | ||||||
| OTHERS | ||||||||
| Heat power | KW | 8.2 | ||||||
| Max. pump pressure | MPa | 16 | ||||||
| Pump motor power | KW | 15 | ||||||
| Valve Size | mm | 16 | ||||||
| Machine dimension | m | 5.0X1.6X1.7 | ||||||
| Machine weight | t | 5 | ||||||
| Oil tank capacity | L | 250 | ||||||
Relatived products
RELATIVED PRODUCTS
Certifications
CERTIFICATION
Company Information
ABOUT US
NINGBO KAYDO PLASTIC CO., LTD. is a professional Razor Making Line manufacturer we have 20 years experience for making plastic razor and Toothbrush Making Line. And we also have the own factory for poducing the razor, we can say we are the most professional factory for the razor and toothbrush line. we can offered all the lines over the wolrd.
FAQ
Q&A
1.Q: Are you a factory or trading company?
A:We are a factory with export license.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Ningbo City ,Zhejiang Province, China, about 1 hours train ride from Shanghai. welcome to visit our factory!
3.Q:How can I get some samples?
A:1)We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
2)Regarding the courier cost: you can arrange a RPI (remote pick-up) service upon Fedex, UPS, DHL, TNT, etc. to have the samples collected; or inform us your DHL collectionaccount. Then you can pay the freight direct to your local carrier company.
4.Q:How does your factory do regarding quality control?
A:"Quality is priority? We always attach great importance to quality controlling from the very beginning to the very end;
1).All raw material we used are environmental-friendly and high-quality
2).Skilful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
Your inquiry will be answered within 24 hours. Wishing to be your long-term partner,
please feel free to contact us, we will do our best for you.
5.Q:Why choose you?
A:1).We have professional engineer, only one engineer can running all machines(save you training cost)
2).Our company have more than 20 years experience, can offer best technical suggestion
3).We cooperate with Gillette(shanghai)/Lord/Schick, can offer the best resource for razor project
